    6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ5257GYYT
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 30 UNITS PER MONTH
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    6X4 Stainless Steel Fuel Transport Trucks , 20000 - 25000 Liter Gasoline Tanker Truck

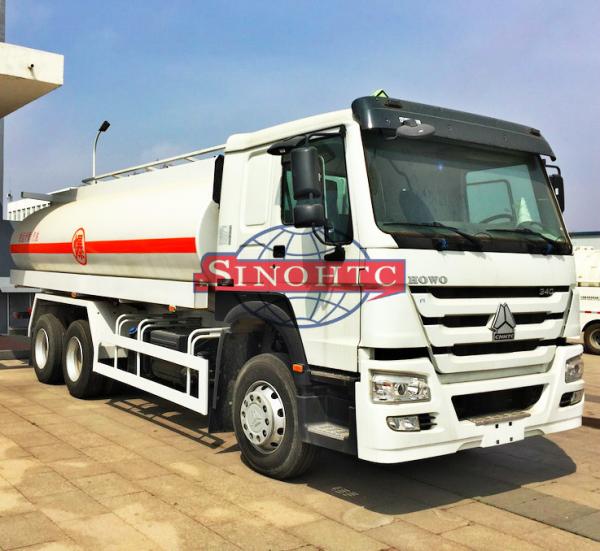

    20000-25000 Liters 6X4 LHD / RHD Sinotruk HOWO Fuel Tank Truck


    Description:


    Comfort: Sinotruk Howo brand cab, the design is more fashion and beautiful, make the driver more comfortable when driving.
    Security: Imbedding in one time makes the main beam stronger. High strength makes it more safe and reliable.
    Effective: Save more oil, attendance is high. And the mixing volume of tank is huge, with the huge horse power engine, can be adapted into all kinds of construction field.


    Product Description

    Truck Type6*4 Oil Tank Truck
    Truck ModelZZ1257M5247C
    Truck BrandSINOTRUK—HOWO
    Driving TypeLeft OR Right Hand Driving
    Dimension(Lx W x H)(mm)11184x2500x3050
    Approaching angle/Departure angle(°)16/10
    Overhang(front/rear) (mm)1500/3109
    Tank capacity( m3 )20 m³
    Gear oil pumpModel76YCB-40(F)
    flux m3/h40
    In /out cabiber mm76
    RPM r/min960
    Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun.
    Wheel base (mm)5225+1350
    Max speed(km/h)90
    Curb weight(kg)11670
    Total weight(kg)25000
    EngineModel

    WD615.87,water-cooled,four strokes,

    6 cylinders in line with

    water cooling,turbocharged and

    inter-cooling, directly injection

    Fuel typeDiesel
    Horse Power336hp
    EmissionEURO II
    Fuel tanker capacity(L)380
    TransmissionModel

    HW15710

    10 forwards and 2 reverse

    Brake systemService brakeDual circuit compressed air brake
    Parking brake

    spring energy, compressed air operating

    on rear wheels

    Auxiliary brakeEngine exhaust brake
    Steering systemModel

    ZF8118,hydraulic steering with power

    Assistance Ratio:22.2-26.2

    Front axle

    HF7 disc brake, Steering with double T-cross section beam

    Loading capacity: 7000kg

    Rear axle

    HW1279, Pressed axle housing, central double

    reduction with differential locks between axles and wheels

    Loading capacity: 12000kg

    ColorOptional
    Chassis

    Frame: U-profile parallel ladder frame with section of

    300*80*8mm and reinforced sub frame all cold riveted

    cross member Front suspension: semi-elliptic leaf springs,

    hydraulic telescopic double-action shock absorbers and stabilizer

    Rear suspension: semi –elliptic leaf spring and bogie springs

    Tire12.00-20, Bias tire
    Tire quantity10+1 spare
    Electrical systemBattery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    Cab

    HW76 cab, with one sleeper and air-conditioner,

    all-steel forward control,55ºhydraulically tiltable to the front,

    2- arm windscreen wiper system with three speeds,

    laminated windscreen with casted-in radio aerial,

    hydraulically damped adjustable driver’s seat and

    rigid adjustable co-driver’s seat, with heating and

    ventilating system, outer sun visor, adjustable roof flap,

    with stereo radio/cassette recorder, safety belts and

    adjustable steering wheel, air horn, with 4-point

    support fully floating suspension and shock absorbers
