    28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material

    Ask Lasest Price
    Brand Name : FAW
    Model Number : CA1313GYY
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 10 UNITS PER MONTH
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

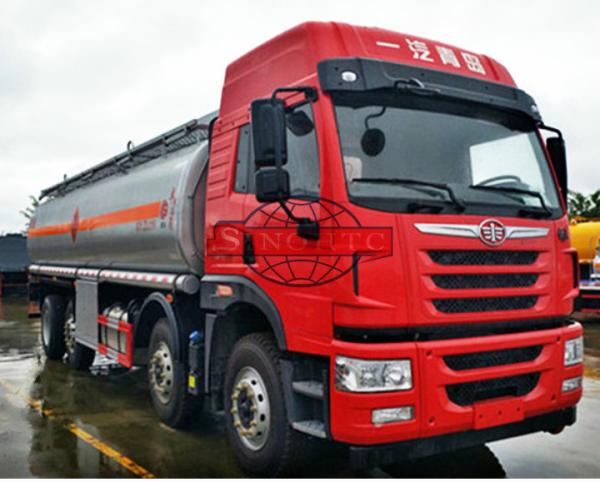

    28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material

    28,000 -35,000 Liters Aluminium Alloy Tank Fuel Oil Gasoline Diesel 4 axles Tank Truck


    28CBM FAW Euro 4 Fuel Tank Truck, in order to prevent corrosion, the outer surface of the tank coated with anti-rust paint and decorative paint, the middle of the tank with a container indicator in the middle of the tank to fuel or outward oil, can direct the volume of the tank (Optional). Tank for the diameter of 500mm holes for maintenance purposes. The big cover is fastened to the plate by the bolts, and the small cover is connected with the big cover by a support pin and an ear plate, and the cover is pressed clockwise to make the small cover pressed. Reverse, remove the ear plate, the small lid can be opened, the upper side of the lid installed with a breathing valve.

    Name28CBM FAW Euro 4 Fuel Tank Truck
    ItemSpecificationsItemSpecifications
    Truck
    ModelHTC5316GYYCGross Weight (kg)31000kg
    Overall dimensions11990X2500X3580mmCerb Weight (kg)12255kg
    Wheelbase (mm)2100+4700+1350mmApproach Angle18°
    Front Track (mm)2020/2020mmDeparture Angle13°
    Rear Track (mm)1847/1847mmNumber of Tyres12
    Number of axles4Front Overhang (mm)1470/2370mm
    Max speed (km/h)79km/hRear Overhang (mm)1470/2570mm
    Traction system8*4Tyre11.00-20,11.00R20,12.00-20 16PR,12.00R20 16PR,12R22.5
    TransmissionManualAllowable Cab Passengers3
    Chassis
    ModelCA5310GYYP66K2L7T4E4BrandFAW
    Emission LevelEuro 4Front Axle Load6500/6500kg
    Leaf Spring10/10/12Rear Axle Load18000kg
    Engine (Motor)
    BrandsModelDisplacementRated Power
    FAWCA6DL2-35E48600ml261kw (355hp)
    FAWCA6DL2-33E48600ml249kw (339hp)
    FAWCA6DL2-31E48600ml231kw (314hp)
    Superstructure
    Fuel Tank Capacity28CBMDensity (kg/cbm)700
    Fuel Tank Dimension9200×2480×1820mmABSCM4XL
    RemarksThe material for the side and bottom protectie device adopting Q235, bolted connection; size 100×50mm, clearance 540mm.
