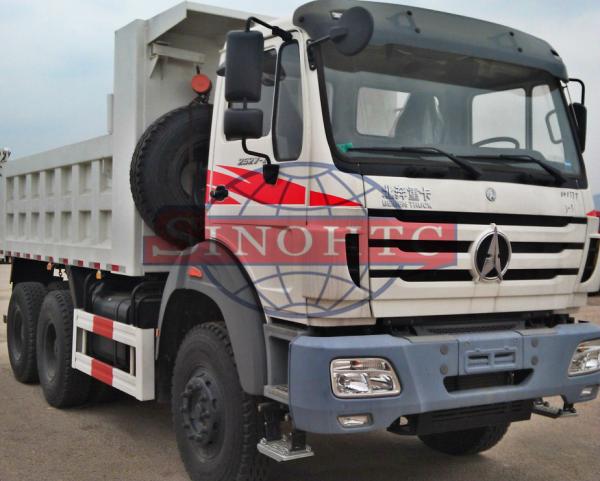

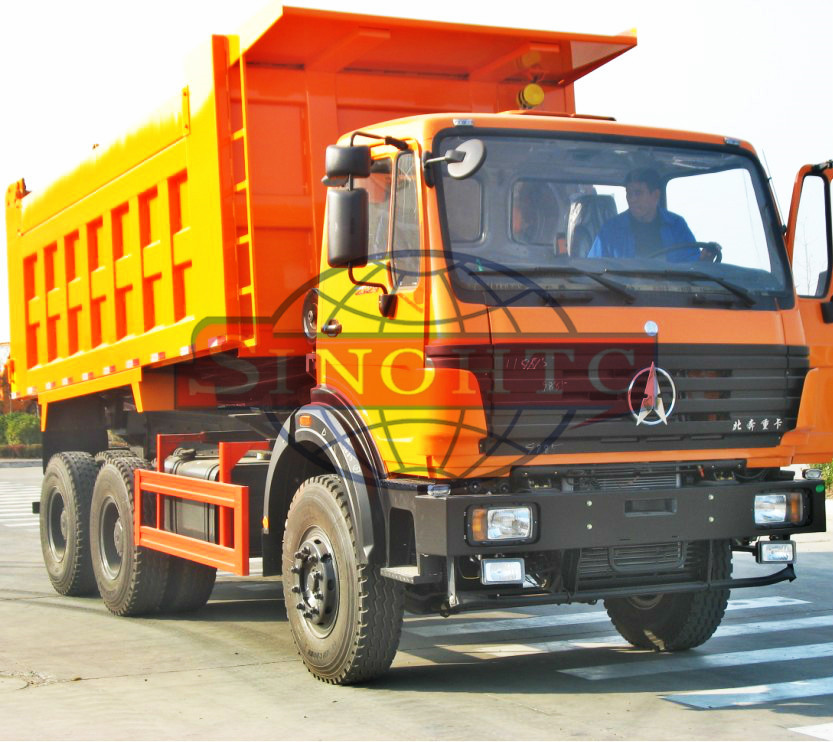

    Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck

    Ask Lasest Price
    Brand Name : BEIBEN
    Model Number : ND2534
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 50 UNITS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck

    3 axle BEIBEN Heavy Duty Dump Truck , 20 - 30 Tons POWER STAR Tipper truck , 6x4 BEIBEN Truck

    This 20 - 30 Tons 6x4 BEIBEN Tipper, have 290hp / 340hp / 380hp engine for optional. The engine and gearbox technique are from STEYR. The cabin, frame and axles technique are from BENZ. Africa clients like to call it POWER STAR.

    Specifications:

    10 TYRES BEIBEN Tipper truck / dump truck 2634K 6x4 truck

    Wheel base (mm)

    3800+1450 wheel

    Model

    BEIBEN --2534K

    Curb weight kg

    12160

    Engine

    Model

    WP10.340E32 WEICHAI Engine

    Power,
    max CV/rpm

    340/2200

    Emission standard

    EUROIII

    Fuel tanker capacity L

    300

    Clutch

    Model

    GFX420, Single dry frictional disc,
    Hydraulic boosting

    Gearbox

    Model

    RT11509C (9+1 gear) or
    9JS150A

    Brake system

    Service brake

    Brake gap can be adjusted automatically,
    double circulation air brake system

    Assistant brake

    Engine exhaust brake

    Park brake

    Potential springs pressing on middle and
    rear wheels.

    Steering system

    Model

    TAS85

    Frame of vehicle

    Fish belly shape, variable width, variable section side beam structure

    Front axle
    (Mercedes Benz
    Technology)

    Double-shoe pneumatic brake, non-driving steering axle

    Middle and Rear axle
    (Mercedes Benz
    Technology)

    Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double
    reduction driving axle, ratio:5.921 or 5.2

    Tyre

    12.00-20 /1200R20/ 315/80R22.5 /1200R24

    Electrical system

    Battery

    2X12V/135Ah

    Generator

    28V-35A

    Starter

    5.4Kw/24V

    Cabin

    Short cab without bed ,left handed, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.

    Overall dimension

    8530*2500*3410mm

    Nominal loading

    12710Kg

    Truck Body
    15CBM,18CBM,20CBM
    Suspension : Strength 13 pcs steel spring and 4 U bolt , desert air filter.

    Color

    Orange or white.

    Our Product Advantages


    (1) Regularly callback to know the vehicle's working status.
    (2) Export to more than 30 countries and regions
    (3) One year quality guarantee or within 30000km, which comes first.
    (4) Perfect after-sale service
    (5) Products Quality Certification SGS CCC ISO
