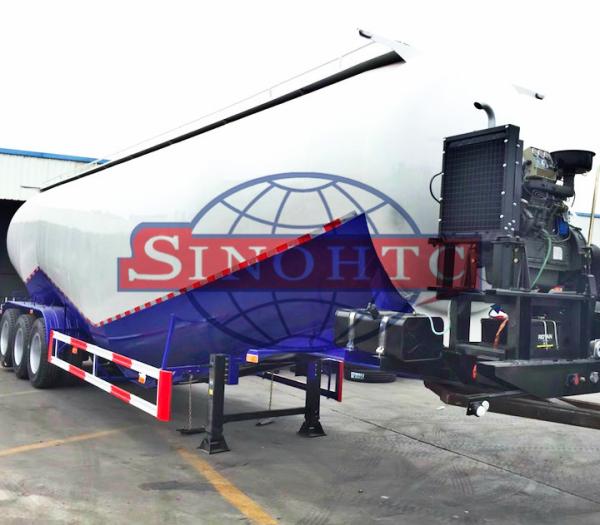

    3 Axles 50 Cubic Meters Bulk Cement Trailer , Powder Bulk Cement Semi Trailer

    Ask Lasest Price
    Brand Name : SINOHTC
    Model Number : HTC9402FLWL
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 30 UNITS PER MONTH
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    3 Axles 50 Cubic Meters Bulk Cement Trailer , Powder Bulk Cement Semi Trailer

    3 axles 50 cubic meters Powder material transport semi trailer


    Our powder material transport semi trailer have followed characteristics:


    High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. Equipped with gasification bed, intake control system,

    and thrusting control system to ensure the pipelines unimpeded. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. The diesel engine (air compressor unit), providing compressed air.


    Total Weight69950 kg
    Rated Load54500 kg
    Tare Weight15000 kg
    Volume50 CBM
    Loading mediumDry bulk cement, bulk powder, coal powder, and so on
    Compartment No & Valve

    compartments is depends on the requirements. with loading

    and unloading valves, loading and unloading pump.

    Wheel Base7000+1310+1310 (mm)
    Tyre Specifications12R22.5-18PR or as customer’s requirements
    No. Of the Tyres8/12/16
    Axle BrandFUWA (BPW,JINSHENG optional)
    No. Of the Axles2/3/4
    Axle-load13000 / 16000 kg
    King Pin50#/90#
    Landing Leg28ton
    Pieces of leaf-spring10(8)
    Suspensionindependent stamping steel rigid suspension (or air suspension)
    Departure Angle14.8
    Front/Rear Overhang2080 mm
    Outside Dimensions (mm)13000X2500X3800 (LxWxH)
    (Interior )Tank shell Dimensions (mm)12800×2500×2300 (LxWxH)
    Material of the Main BeamQ345B manganese plates, automatic submerged arc welded
    Brake SystemDual line braking system /ABS
    Brake Air ChamberSix double chamber
    Electrical24V 7 ways(7 wire harness)
    Usage

    The cargo's carrying part is tank-style designed, is suitable for

    the transportation of liquid products


    Characteristics

    1. 1. High transport efficiency, ensuring the products will not

    be deteriorated in the process of transportation, saving the

    packing materials to reduce the transport costs.

    1. 2. Equipped with gasification bed, intake control system,

    and thrusting control system to ensure the pipelines unimpeded.

    1. 3. The tanks bulbar and the horizontal sextant angle are greater

    than the material rest angle, ensuring the discharging speed.

    1. 4. The diesel engine (air compressor unit), providing compressed air.
    Other Specifications

    The sealing head of the tank shell can be torque and ellipse,

    and internal anti-wave plates are installed. Heat

    preservation organization adopts the single-layer insulation by

    using compressed thick glass fiber, with good presence and

    light weight. The internal part can be single layer or dual layer
