38m 42m 48m Cement truck/ Concrete truck , Concrete pump truck ,

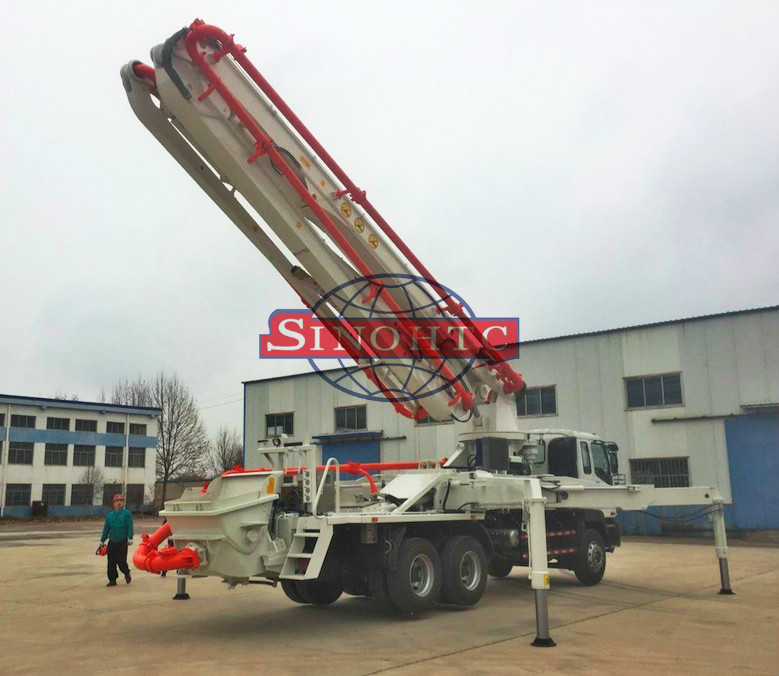

ISUZU Truck mounted pump
Specifications:
| Model | HTC5281THB38X-4Z |
| | |
| Pumping system | Max. Theor. output | m3/h | 120 |
| (/) Max. Theor. concrete output Pressure(high/low pressure) | MPa | 8 |
| Rated working pressure | MPa | 32 |
| (/) Pumping frequency(high/low pressure) | min-1 | 26 |
| Hopper capacity | L | 600 |
| Filling height | mm | 1600 |
| Hydraulic system type | | Open loop |
| Distribution valve | | S S valve |
| × Oil cylinder dia.×stroke | mm | Φ130×1900 |
| ×Concrete cylinder dia.×stroke | mm | φ260×1900 |
| Hydraulic oil cooling | | Air cooling |
| Recommended concrete slump | cm | 12~23 |
| Max. aggregate dimension | mm | 40 |
| Placing boom | Structure type | | 37X-4Z |
| Placing depth | m | 37 |
| Horizontal distance | m | 34 |
| Placing depth | m | 21 |
| Slewing angle | | 365° |
| Pipe diameter | mm | 125 |
| End hose length | mm | 3000 |
| Min. height of opening placing boom | mm | 8500 |
| (××)Outriggers span (front×rear×side) | mm | 6200×7200×8120 |
| Chassis and the whole machine | Chassis model | | CYZ51Q |
| Wheelbase | mm | 4600+1350,4575+1400 |
| Engine type | | 6WF1A |
| Engine power | kW/(r/min) | 265/2200 |
| Oil tank cubage | L | 400 |
| Tail gas exhaust standard | | III |
| Total weight | kg | 29870 |
| (××) Overall dimensions | mm | 12000×2490×3850 |
| Others | Lubrication mode | | Automatic lubrication |
| Oil tank volume | L | 400 |
| Control mode | | +Manual+remote control |
| Maximum water pressure | MPa | 0.7 |
| Water tank volume | L | 500 |
| Pipe cleaning mode | | /Water cleaning/dry cleaning |
Our Product Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 40 years' experience as a manufacturer, more than 12
years exporting experience.
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 30 countries and regions
(7) One year quality guarantee or within 100000km, which comes
first.
(8) Other spare part could be supplied by OEM at cost prices.
(9) Regularly callback to know the vehicle's working status.
(10) The overseas engineers are always ready to deal with
unexpected needs.
Packaging & Shipping
1.Nude,polish with water wax before shipment.
2. 40/45HQ ,Ro-Ro ship and bulk ship transport.
FAQ
Q: What can we do?
A: We can supply you the trailers manufactured with brand parts and
competitive price. Also we provide you the proposal for you need.
Q: How can you transport the trailer?
A:We can deliver the trailers via 40FT container (flatbed, drop-side
trailers) or RO-RO ship.
Q: How can you ensure your quanlity?
A:Before put into any production, we confirm you the final drawing
first and our technicians and QC will stick to the whole process.
You are welcomed to check before delivery.
Q: How can you ensure the trailer in good condition when I receive
it?
A:Any product will be polished with wax before leave factory yard in
case seawater corrosion
during shipping time
Q: Can I have my own logo and painting?
A:Sure, your products will be designed as you need.
Welcome you to visit our factory !
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show you around the workshop and production line;
4. We can supply the truck parts;
5. We can supply the stock trucks if you need the trucks urgently.
