    U Shape Rigid Dump Truck , Single Side Cab 50 - 60 Ton Heavy Dump Truck

    Ask Lasest Price
    Brand Name : SINOHTC
    Model Number : HTC60MPX
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 50 UNITS PER MONTH
    Delivery Time : 50 DAYS
    • Product Details
    • Company Profile

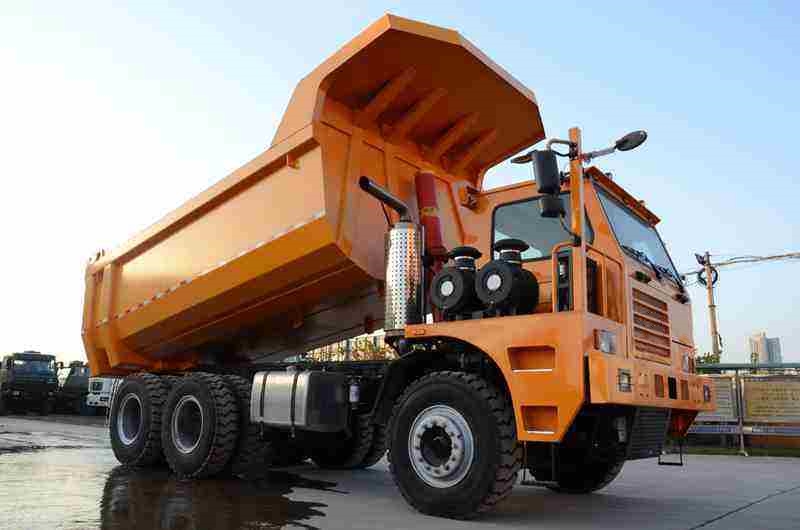

    U Shape Rigid Dump Truck , Single Side Cab 50 - 60 Ton Heavy Dump Truck

    3 axles 50-60 ton Rigid U shape Mining Dump Truck, U shape rigid dump Truck,mining dumper


    This Mining Dump Truck is popular in Africa, South-east Asia, especially in the mining site, it have very good performance.


    specification

    Truck Model:HTC60M
    Driver Cabin:SINGLE CAB
    Engine/horsepower:WP12.420
    Gearbox:12JS200T
    Steering:ZF8118
    Front/Rear Axle:16T / 25T double reduction axle
    Chassis frame: mm, 450*130(16+14)
    Tipper body dimension(mm):5800*2800*1500
    tipper body Description:Floor 16 side10mm Mn steel ,HYVA 196 cylinder
    Other specification:14.00-24 28PR mining tire
    Front/Rear Overhang :Mechanical spring
    Front/Rear Axle Leaf Spring100*20*13,120*32*13
    Brake system:Dongjiang brand
    others:Three level air filter, exhaust break
    Tare weight(kg):28000
    Max weight(kg)32000
    Gross weight(kg):60000
    Overall Dimension(mm):8800*3200*4100
    Max speed(km/h):51
    Min. Ground Clearance(mm):435
    Min turning Radius(m):≤10
    Max grade ability(%):41
    Approach/Departure(°):33/45
    Wheelbase(mm):3750+1690
    Wheel track front /rear (mm):2793, 2580
    Max torque(Nm)/rotate speed(r/min):2100/1150-1350
    Fuel tank(L):400L
