    Edible Oil Aluminium Tanker Trailer 50 000 Liters Volume 24000kg Axle Load

    Ask Lasest Price
    Brand Name : SINOHTC
    Model Number : HTC9406SYYG
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 UNITS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

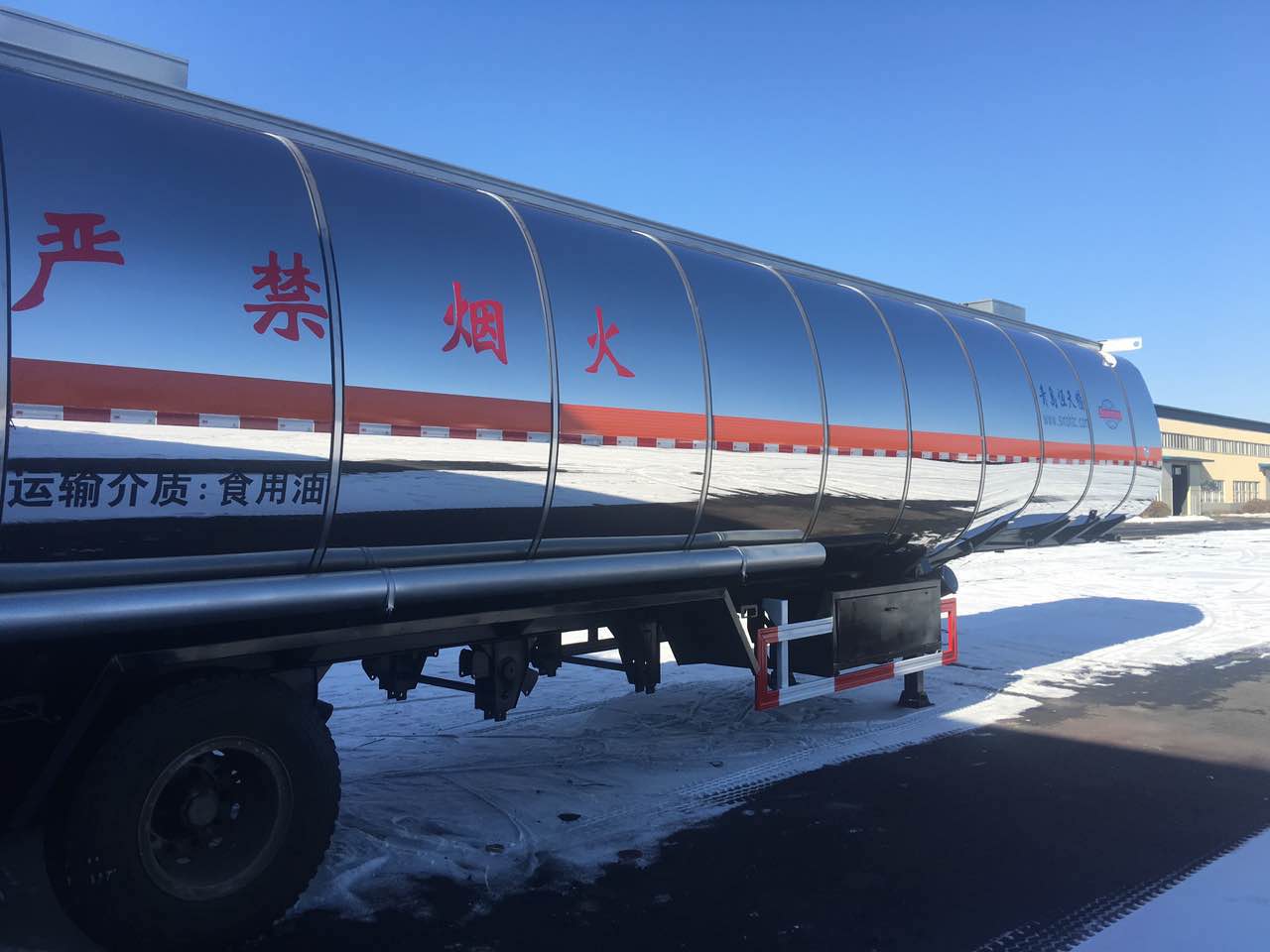

    Edible Oil Aluminium Tanker Trailer 50 000 Liters Volume 24000kg Axle Load

    50 000Liters Aluminium edible oil tanker trailer, cooking oil Tanker trailer, 3 axle aluminum tanker trailer


    Specifications:

    Product Specifications
    GVW50 000 kg
    Rated Load50 000L
    Tare Weight9000 kg
    Volume50 M 3
    Compartment No & Valve5 isolated compartments with loading and unloading valves, loading and unloading pump.
    Wheel Base6910+1310+1310 (mm)
    Tyre Specifications11.00R20 12PR 11R22.5 12PR 12R22.5 12PR
    No. Of the Tyres12
    No. Of the Axles3
    Axle-load24000 kg
    King Pin50#/90#
    Landing Leg28ton
    Pieces of leaf-spring10(8)
    Suspensionindependent stamping steel rigid suspension (or air suspension)
    Departure Angle13.6
    Front/Rear Overhang2270 mm
    Outside Dimensions (mm)13000X2500X3700 (LxWxH)
    (Interior )Tank shell Dimensions (mm)12800×2230×2050 (LxWxH)
    Material of the Main BeamQ345B manganese plates, automatic submerged arc welded
    Brake SystemDual line braking system/ABS
    Brake Air ChamberSix double chamber

    Our Product Advantages

    Our Aluminium edible oil tanker trailer made by high quality aluminum, make more light tare weight, to load more oil for the customer. to save fuel and load more


    Material can be choice.

    carbon steel(Q235,Q345),

    alloy(SS314,SS316),

    aluminum(Mirror,Matt)


    Services business activities is the starting point and destination . Customer demand is the focus of the development company , customer satisfaction is our constant pursuit. Family services throughout the product development, manufacturing , sales service , sale of services , after-sales and post-sales customer visits the entire process.

    User manual should be used, maintenance and repair . Under normal conditions of use , quality guarantee period is six months ; wearing parts ( such as : light bulbs, brake pads wrist, brake pads , etc. ) are not covered by the warranty .
