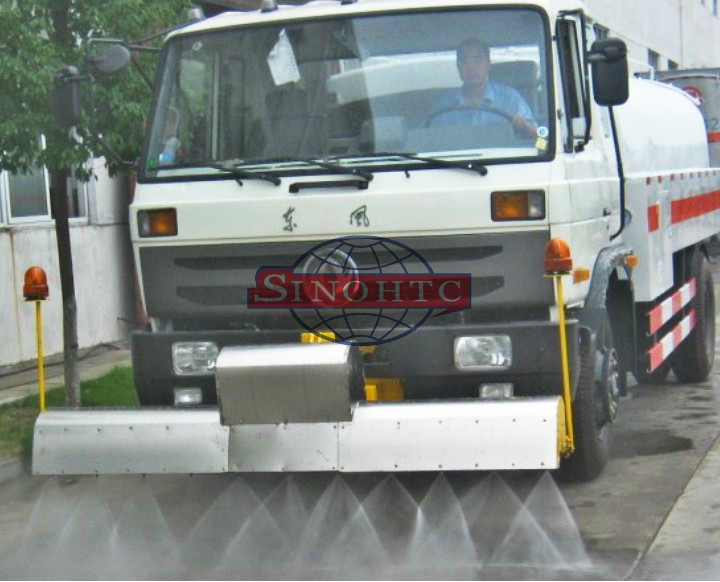

High Pressure Water truck / sprinkler , High Pressure Washing Truck
, high pressure washer truck
This 8 - 10 tons High Pressure Water truck sprinkler could Washing
road with High Pressure .
Specifications:
| Item | Configure |
| Chassis model | CA1163P7K2 |
| Engine model | CA6DE-18E3F/ 22E3F/ 24E3F |
| Engine power (hp) | 180/ 220/ 240 |
| Overall dimensions(L×W×H( mm) | 9010×2500×3030 |
| Total weight(kg) | 25000 |
| Maximum speed(km/h) | 20 (Working condition) |
| Water Tank capacity(m3) | 12 / 15/ 20/ 25 |
| High pressure water pump pressure (Mpa) | 10 |
| High pressure pump flow (L/min) | 152 |
| Cleaning width(m) | 2.5-3.5 |
| Sprinkler pump head(m) | 90 |
| Sprinkler pump flow(L/ Min) | 600-800 |
| After high injection process (m) | ≥38 |
| Sprinkler width (m) | ≥24 |
| Pump model | 80QZB-60/90 |
Main performance description
1. Vehicle selection of the country emission standards CA1163P7K2 refitted chassis, short wheelbase, both to meet the requirements of
the load and improve the mobility of the vehicle.
2. With independent high and low pressure two sets of water system,
the use of sub-engine-driven high-pressure pumps, chassis engine
drive low-pressure water pump. Machine speed and high pressure pump
speed will not contain each other, high pressure cleaning speed can
be arbitrarily controlled.
3. The use of domestic first mode of operation, both high-pressure
cleaning function, there are sprinkler function, two functions can
be used alone, but also with the use to meet the different
pollution of the road cleaning.
4. Full truck control using high reliability, pollution-free
advanced pneumatic system, all road operations can be carried out
in the cab operation.
5. The front high pressure cleaning device consists of three
cleaning racks, can form a complete cleaning plane. Extrusion
cleaning device has its own obstacle avoidance function, collision
with the curb does not produce structural damage, to prevent the
formation of roadside dead ends.
6. Multi-angle single point dredging function, apply to the removal
of local road safety dead ends.
7. With the former washing, after the sprinkler function, before
and after the use of different characteristics of the nozzle.
Before the nozzle flushing pressure, can be washed six lanes; after
the water for cooling, dust;
8. With the left column in the column side of the red, right rear
pillar side red device, the nozzle can be about 360 °, up and down
360 ° arbitrary adjustment.
9. The tank is made of special treatment 16Mn board, no corrosion.
Optional (water tank made of SUS304 stainless steel, can be used in
winter to spray snow melt snow, never rust, so that the car to
achieve a car with more.
10. After the rear table, with a high water gun, with auxiliary
fire function, high water gun can be adjusted into a column or
mist; equipped with high pressure cleaning gun, can be used to
clean road signs, billboards, body self-cleaning.
11. Switch control valve, sprinkler system pipes are resistant to
corrosion materials, reliable and durable.
12. Water tank with a low water level sensor alarm system, when the
water level is low to automatically alarm, to prevent water damage
to the pump.
13. With pneumatic netting antifreeze device, to prevent the winter
due to water pipe pipeline residual water icing caused by damage to
the water system components.
