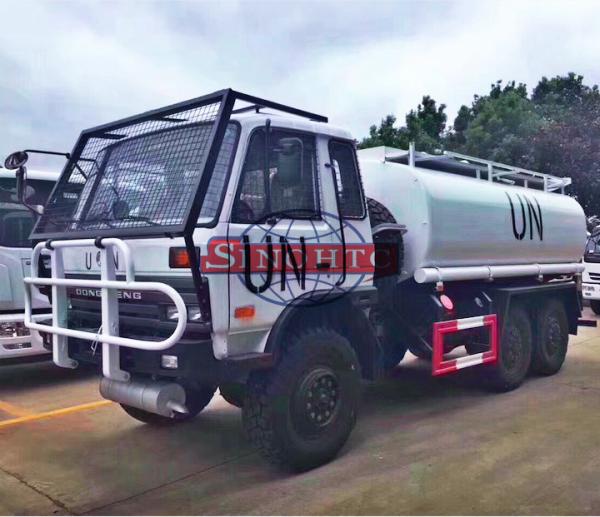

    6x6 Water Tanker Truck For UN 10000 - 12000 Liters Volume Three Axle

    Ask Lasest Price
    Brand Name : DONGFENG
    Model Number : EQ2253GPSEQ5
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 30 UNITS PER MONTH
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    6x6 Water Tanker Truck For UN 10000 - 12000 Liters Volume Three Axle

    10000 - 12000 liters Dongfeng 6x6 water tanker truck special supply for UN


    Product Application

    Water tanker truck is designed to carry and transfer water by pump also could be used for road cleaning purposes. This Dongfeng 6x6 water tanker truck features with competive price but durable. the water tank capacity could make 10 cubic meters.


    Main Features:

    1) Water tanker eiliptical, cylindrical or "D" shape and is made of sheet metal or stainless steel, Electrically welded throughout with accurately finished welding seams.

    2) One self-sucking pump installed at the vehicle’s chassis, hydraulically driven by PTO of truck engine.

    3) Access ladder and rear mounted spray bar. spraying nozzle can be turned around by 360°, adjustable spraying width with pump from approx 10 to 12 meters.

    4) Tanker has water level indicator.


    Dongfeng 6x6 Army Military Sanitation Water Sprinkler Water Delivery Truck
    Chassis Model /ManufacturerEQ2258KB3GJ/ Dongfeng
    Overall DimensionLength×Width×Height8600 *2495*3100
    Total Mass25000 Kg
    Max Payload20000 Kg
    Kerb Weight12705 Kg
    The parameters of chassis
    Chassis Model /ManufacturerEQ2258KB3GJ/ Dongfeng
    Driving type6*6(Left/ Right Hand Drive)
    Cab

    One row with one sleeper(as picture1)

    painted with orange color(as picture2)

    EngineManufacturerDongfeng Cummins
    ModelB210 33
    Rated Power210HP
    Maximum power155KW
    Fuel typeDiesel oil
    Displacement5900 ML
    Gear-boxDaTong six gears
    Six forward and one reverse
    Front axle7000Kg front axle
    Rear axleDouble 10000Kg rear axle
    Wheel base4350+1300mm
    Wheel Tread1940mm/1860mm
    The number of leaf spring8/13
    Tyre10.00-20
    The number of tyre10+1(spare tyre)
    A/C Air ConditioningWith Air Conditioning
    Max Speed90Km/h
    The parameters of water tank
    Volume of tank12 M3
    Tank shapeQuadrate ,Ellipse, Cylindrical
    Material of tanker5mm Q235 carbon steel
    Color of the tankerAccording to your demand
    Special functionRating speed:1450r/min;
    flux:60m3/h
    self-suction height::7.5m,
    sprinkler width≥14m
    the rangewhen adjusted column,the range ≥30m
    when adjusted fog, the range≤15m
