4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck

    Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers

    Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers
    • Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers
    • Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers
    • Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers
    • Buy cheap 4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck from wholesalers

    4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ1167
    Certification : ISO9001
    Price : Negotiation
    Supply Ability : 30 UNITS PER MONTH
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

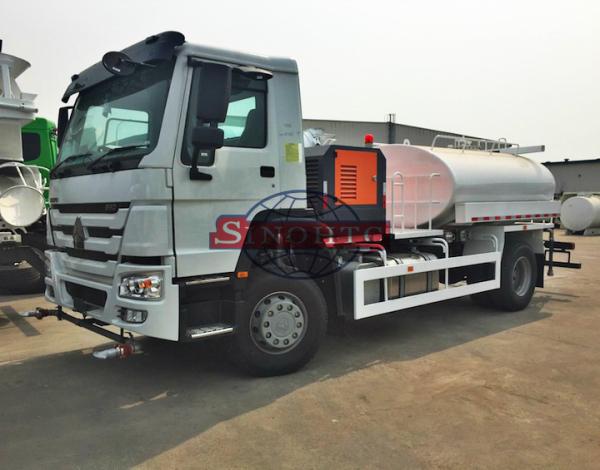

    4x2 Right Hand Driving Water Spray Truck , 10 - 12 Cubic Meter Commercial Water Truck

    SINOTRUK 4x2 Right Hand Driving HOWO 10 - 12 Cubic Meters Water Cating Truck

    Main Features of SINOTRUK 4x2 Right Hand Driving HOWO 10 - 12 Cubic Meters Water Cating Truck

    A/// Equipped with front(rear,side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with CLW pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze.
    B/// With front flushing, back sprinkle and side spray,high pressure gun in rear,Platform,two water pipe,it length is equal to the tanks.
    C/// With the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
    D/// Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.


    E/// tanker material :carbon steel
    4x2 12 cube SINO water tanker truck

    Cabin / Passenger Capacity

    One and half row Seat, HW76 flat top with a bed, with airbag seat, tiltable,
    with air conditioner, 2+1 passenger

    ChassisModelZZ1167M4617C
    Overall dimensions8705*2500*3300 mm
    G.V.W16000 kg
    Net weight8300 kg
    Design load15000 kg
    Drive type4x2
    Suspension F/R1500/2605 mm
    Wheelbase4600 mm
    Number of axles2
    Axle-load5900/10500 kg (one rear driving axle)
    Approach/Departure Angle16/12 °
    Number of Spring leafs10/9+6
    Track F/R2041/1830 mm
    Tire ( No. & specification)11.00-20 18PR, 6pcs+1pc ( optional 11.00R20 18PR )
    Max speed (Km/h)≥ 100 km/h
    Brake systemPneumatic braking
    SteeringPower steering
    TransmissionHW13710, Mechanical 10+2
    EngineEngine modelWD615.92 (EURO 3 emission)
    Type of fueldiesel
    Power196 kw ( 266 hp )
    Exhaust9726 ml
    Water TankTank capacity10000~12000 Liters = 10~12 m3
    Tank shapeOval shape.
    Water tanker size5200*2200*1250 mm (12 m3)
    Tank materialMild steel / stainless steel / aluminum alloy
    Standard equipment

    With water pump, water cannon with working platform.
    fire valve, water valves, water pipes.
    Also could modify in potable or transport water tank.
