Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type

    Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers

    Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers
    • Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers
    • Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers
    • Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers
    • Buy cheap Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type from wholesalers

    Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type

    Ask Lasest Price
    Brand Name : SINOHTC
    Model Number : HTC9601FLDPB
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 UNITS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

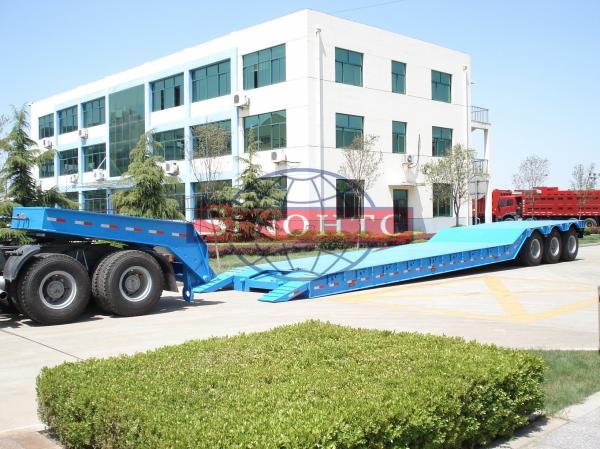

    Tri Axle Front Loading Low Bed Semi Trailer Gooseneck Hydraulic Detachable Type

    60tons 3 Axle Front Loading Low Bed Semitrailer,heavy duty Gooseneck Hydraulic Detachable lowbed trailer

    This Front Loading detachable gooseneck lowboy trailers is special for heavy duty machine transportation, its easy climb on the trailer than from the normal back

    Specifications

    Front Loading Low Bed Semi trailer
    Tech Parameter- Gooseneck Hydraulic Detachable
    Rated Capacity60T
    The control system
    Integrated into the central frame
    Air cylinders
    Oil tank
    Hydraulic systemSafety valves
    Main beam MaterialAH60,40Cr
    axle3 x 13tonBPW AXLE
    Axles / Tires3 axles / 12 Tires
    Total Dimension15000mm+3700mm+700mm *3000mm*1750+300mm
    Tire Size12r20
    Wheelbase1500mm
    Modules ConnectionsSide-battle for different combinations. Axle units mounted on the frame by bolting
    Equipment for Modular Combinations
    Diesel Power Plant22 KW
    Hydraulic Pump30 1/ min
    Standard Shaft3000mm long, flexible coupling ring, diameter 50 mm
    Operating head2 file combination
    Wireless Remote ControlHandheld operator panel / Transmitter - 1 piece
    Hydraulic bolted connector3 pcs
    Braking systemDual line braking system with automatic air brake and ABS
    Operating panel1 pc with leveling system
    Alarm panel2 pairs
    Flashing light2 pcs
    Tool Box1 set of standard tools
    Hydraulic Gooseneck
    Rated capacity60T
    Pin3.5-inch swivel pin
    Control systemIntegrated dual-control system
    ConnectorsHydraulic and pneumatic
    Taps3 - 4 pcs
    Other capacity with other dimensions optional

    RFQ
    1. Q: Are you a manufacturer or trading company?
    A: we are manufacturer. You are welcomed to visit our factory.

    2. Q: What kind of payment do you accept?
    A: We accept T/T and L/C at mostly.
    If you want to use others payment, contact me for more info.

    3. Q: What's your delivery time?
    A: It depends on the products.

    ProductsDelivery time
    Low bed trailer, Container trailer, skeleton trailer, side wall trailer,10-15 days
    Fuel tanker trailer, bulk cement trailer30 days
    Special truck, like detachable gooseneck trailer, hydraulic modular trailer35 working days

    4. Q: What's warranty time?
    A: Main frame, one year; Vulnerable parts,three month; Others parts, half year;
    5. Q: What's your after-sale service?
    A: We provide technical support for our products.
    Besides, we also provide you spare parts as long as you need.
