    Side Semi Dump Trailers Thtree Axle ABS Optional 50 Tons Payload Capacity

    Ask Lasest Price
    Brand Name : SINOHTC
    Model Number : HTC9401UBGZX
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 50 UNITS PER MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Side Semi Dump Trailers Thtree Axle ABS Optional 50 Tons Payload Capacity

    50tons 3 axle U shape Dump trailer / tri axle self dumping trailer/ heavy duty dump trailer


    Specifications:


    DIMENSIONS8600*2500*3300MM
    INNER DIMENSIONS7690*2330*1420MM
    TARE WEIGHTwithin 8.3T
    PAYLOAD35-45T

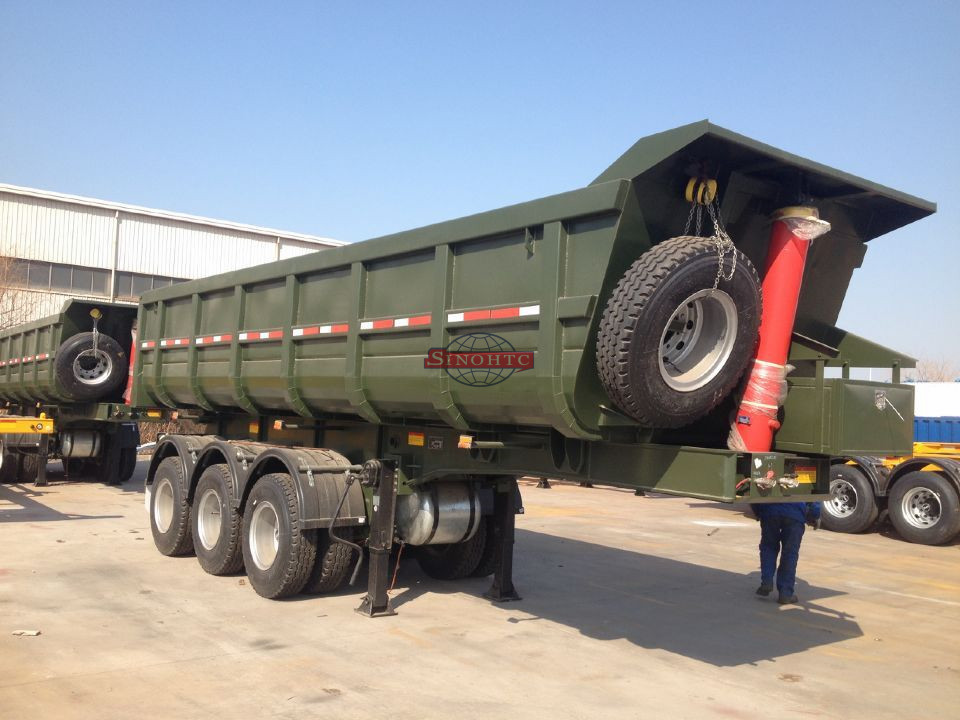

    Photo for reference, final product can be manufactured according to exact requirements
    DUMPER BODY
    FLOOR6MM
    SIDE/FRONT/REAR PLATE4MM (T750 high tensile)
    VOLUMN25CBM
    SPECIFICATIONS
    ChasisHeavy duty and extra durability designed ; Opting for high tensile steel T750L, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 150mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 14mm,width 150mm.
    Hydraulic SystemOne set of HYVA cylinder FE-191-5-06180
    Axle3 units of L1 13T 10 holes
    Tyre13 units of DOUBLE COIN (brand) 12.00R20 (Including one spare tyre)
    Wheel Rim13 units of 8.5-20
    King Pin2'' bolted style
    Landing GearFW 19'
    SuspensionAmerican design mechanical suspension
    Leaf Spring6 sets of 7-pieces 90*16mm leaf spring
    Braking System2 of WABCO RE-6 relay valve; 6 of T30/30 Spring brake chamber; 40L air tanks
    ElectricInternational standard 24v circuit 7-pin ISO socket(JAEGER POWAY) ; Tail lamp with LED lights.
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    AccessoriesOne standard tool box

    Our 3 axle U shape Dump trailer use U shap dump body, it can make the unloading more saftly and more quickly, also reach low left in the box after dumping discharging




    Type: Semi-Trailer, 65 ton tipper Semi trailer

    Material: Steel, High Strength Steel

    Certification:CCC, DOT

    Size:11000*2500*3600mm, 11000*2,500*3,620mm

    Max Payload:50T

    Place of Origin:Shandong, China (Mainland), Shandong, China (Mainland)

    Axles:

    3 Axle FUWA/BPW/YUEK

    King Pin: 2"(50mm)or3.5"(90mm) JOST

    Tire:12R22.5 Factory or Triangle Brand

    Main beam Height:500mm

    Chassis:Q345 or T600 high strength Bao Steel
